85 Series Mogul Deadlock

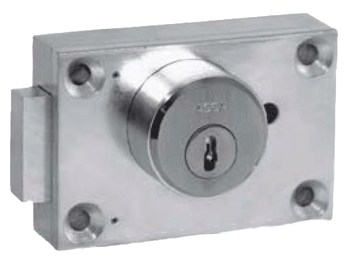

Part No: 7L 85RH-5M1(Shown)

The Series 85 Deadlock w/Mogul Key Cylinder are used in Swing Door applications, Access Doors and Swing Doors. They use a Medico Style that can be keyed on either side or both side. The lock bolt standard throw is 3/4" with 1/2" projection, but is also available in 1 1/4" projection. The lock tumblers a heavy duty brass pick-proof in 5 or 6 plate combos.

Specifications:

Size: 5 1/2" x 3 3/4" x 1 1/2" Thick

Key Cylinder: Mogul style

Material: Steel

Bolt Material: 3/4" x 2" Steel w/3 hardened pins

Finishes: Zinc plated

Fasteners: 4ea. 3/8-16 x 2" Security Flathead Torx

Mounting Template: Series 85

Options Available:

Keyed Both Sides: 7L 85RH-5M2

Six Pin Tumbler: 7L 85RH-6M1
